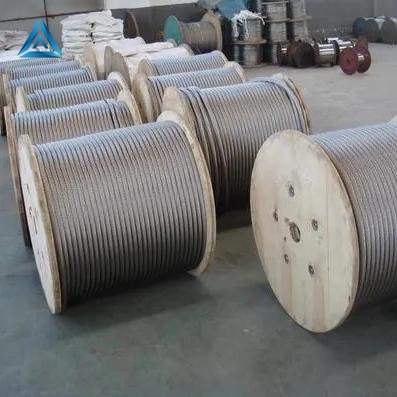

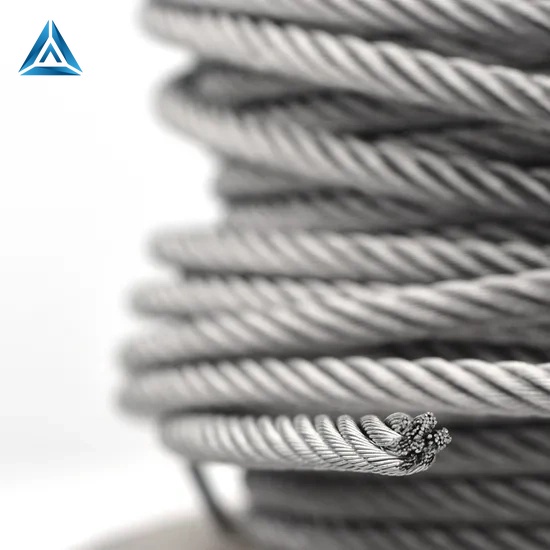

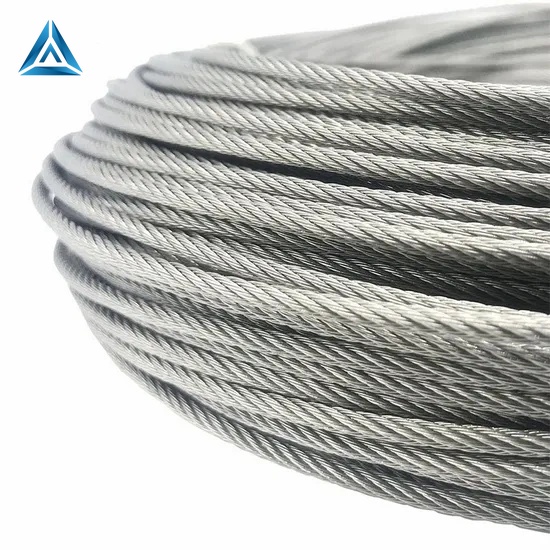

Stainless Steel Wire Rope

Stainless steel wire ropes are manufactured by twisting multiple layers of 304 or 316 grade stainless steel wire. Available in standard configurations such as 1×7, 7×7, and 7×19, they combine high strength with flexibility, offering excellent fatigue resistance and immunity to brittle fracture. The 316 grade is suitable for marine and chemical environments; these ropes are widely used in applications ranging from marine lifting, architectural cabling, and equipment towing to guardrails and decorative features. Capable of withstanding extreme temperatures, they offer a service life far exceeding that of standard carbon steel ropes.

sales04@dxsteelgroup.com

+86 13256191295

Product Description

Stainless steel wire ropes are manufactured by twisting multiple layers of 304 or 316 grade stainless steel wire. Available in standard configurations such as 1×7, 7×7, and 7×19, they combine high strength with flexibility, offering excellent fatigue resistance and immunity to brittle fracture. Featuring an inherent rust-resistant passivation layer, they withstand seawater, humidity, and mild corrosion, eliminating the need for frequent lubrication or maintenance. Grade 316 variants are suitable for marine and chemical environments; these ropes are widely used in applications ranging from marine lifting and architectural tensioning to equipment towing and decorative railings. Capable of performing in extreme temperatures, they offer a service life far exceeding that of standard carbon steel ropes.

Product Name	Steel Wire Rope
Standard	GB 8903-2024, ISO 10425:2023, ASTM, JIS, etc.
Material	Galvanized, stainless steel, carbon
Diameter	6-70mm
Length	100m-2000m
Construction	77, 719, 619+FC, 637+IWR, 624+7FC, 661+IWS
Rope Core	Steel core, hemp core, asbestos core
Composition	Steel wire, rope core and grease
Package	Wooden Reel/coil/plastic reel
Delivery time	7-10 Days
MOQ	1 Ton

Product Categories

Main Ingredients	Tensile Strength	Elongation	Yield strength	Hardness
Stainless Steel	Cr, Ni, Mo	≥520 N/mm²	≥40%	≥205 N/mm²	HB ≤187
Galvanized	Fe, C, Si, Mn	≥350 N/mm²	≥15%	≥207 N/mm²	HB ≥150

Chemical Composition

Steel Grade	Carbon(%)	Silicon(%)	Manganese(%)	Phosphorus(%)	Sulphur (%)	Chromium(%)	Nickel(%)	Cuprum(%)
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17

PRODUCT PARAMETERS

Product Structure

Product Display

Product Application

PACKAGING AND TRANSPORTATION

FAQ



What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated



What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company



Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.



Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.



Are you a factory or a distributor?

We are a factory with 15 years of export experience



How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
