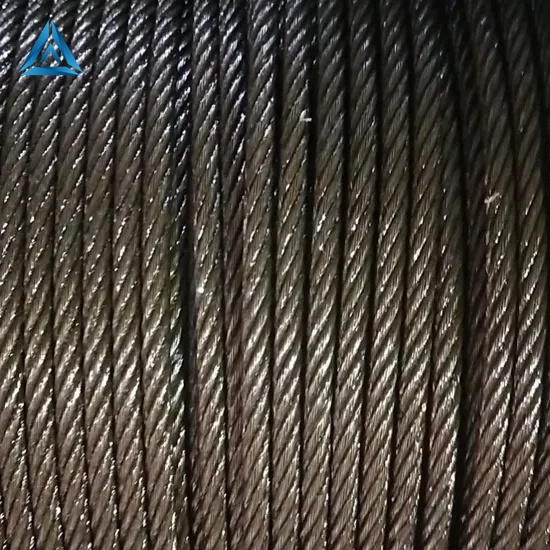

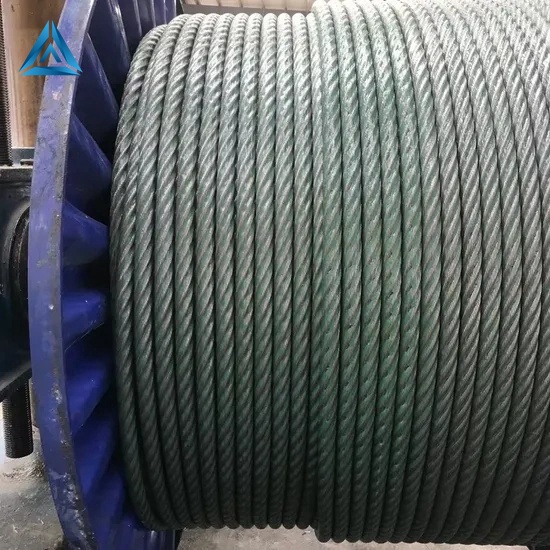

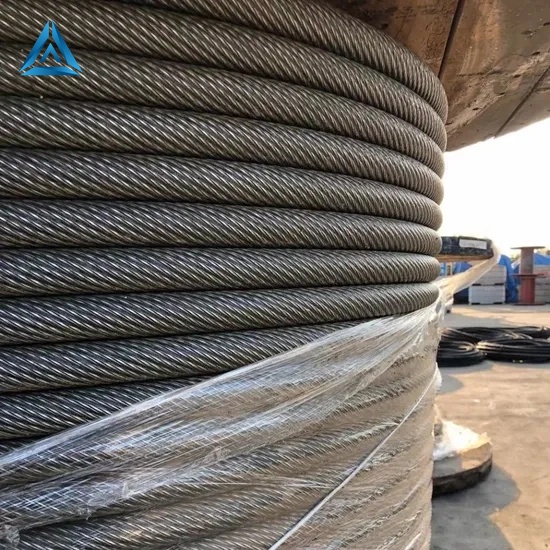

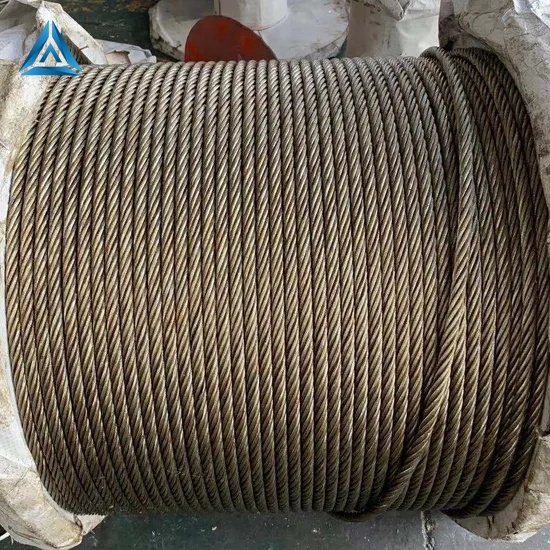

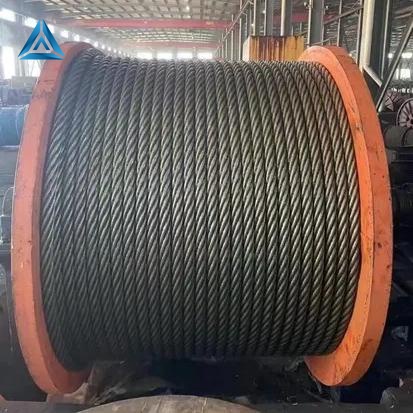

6xK36WS+IWR 28mm Steel Wire Rope

The 28mm compacted strand 6xK36WS+IWR uses a Warington Sirus line contact structure with an independent steel core. The compacted strands result in a higher fill rate, leading to superior wear resistance, pressure resistance, and fatigue resistance. Its load-bearing capacity surpasses that of ordinary ropes of the same specifications. It supports smooth and hot-dip galvanized finishes. Suitable for port gantry cranes, engineering cranes, and mining winches operating under multi-layer winding and heavy-duty conditions, it exhibits low bending loss, longer service life, and is ideal for high-frequency continuous lifting operations.

sales04@dxsteelgroup.com

+86 13256191295

Product Description

Product Name	Steel Wire Rope
Standard	GB 8903-2024, ISO 10425:2023, ASTM, JIS, etc.
Material	Galvanized, stainless steel, carbon
Diameter	6-70mm
Length	100m-2000m
Construction	77, 719, 619+FC, 637+IWR, 624+7FC, 661+IWS
Rope Core	Steel core, hemp core, asbestos core
Composition	Steel wire, rope core and grease
Package	Wooden Reel/coil/plastic reel
Delivery time	7-10 Days
MOQ	1 Ton

Product Categories

Main Ingredients	Tensile Strength	Elongation	Yield strength	Hardness
Stainless Steel	Cr, Ni, Mo	≥520 N/mm²	≥40%	≥205 N/mm²	HB ≤187
Galvanized	Fe, C, Si, Mn	≥350 N/mm²	≥15%	≥207 N/mm²	HB ≥150

Chemical Composition

Steel Grade	Carbon(%)	Silicon(%)	Manganese(%)	Phosphorus(%)	Sulphur (%)	Chromium(%)	Nickel(%)	Cuprum(%)
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17

PRODUCT PARAMETERS

Product Structure

Product Display

Product Application

PACKAGING AND TRANSPORTATION

FAQ



What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated



What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company



Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.



Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.



Are you a factory or a distributor?

We are a factory with 15 years of export experience



How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
