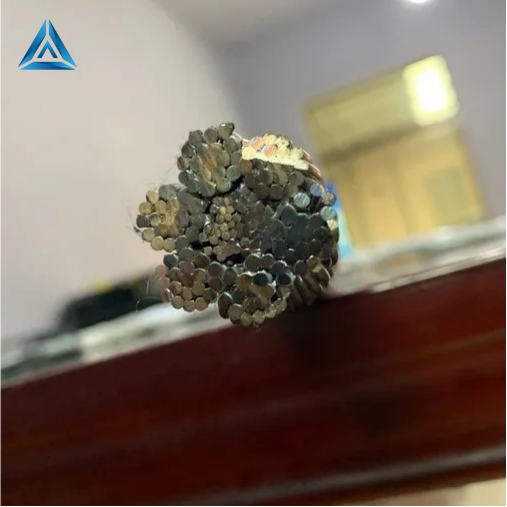

IWRC Steel Wire Rope

Featuring an independent steel core, this wire rope offers significantly higher overall tensile strength and load-bearing capacity compared to fiber-core alternatives; it is resistant to crushing and deformation, and withstands heavy-duty impact loads. The wires undergo anti-corrosion galvanization and are precision-stranded in multiple layers, resulting in a compact, stable structure that resists unraveling. Designed for demanding applications—such as mining, large-scale lifting, construction machinery, and heavy port hoisting—it offers high-temperature and tensile resistance along with a superior safety factor, making it ideal for long-term, high-intensity, heavy-load operations.

sales04@dxsteelgroup.com

+86 13256191295

Product Description

Product Name	Steel Wire Rope
Standard	GB 8903-2024, ISO 10425:2023, ASTM, JIS, etc.
Material	Galvanized, stainless steel, carbon
Diameter	6-70mm
Length	100m-2000m

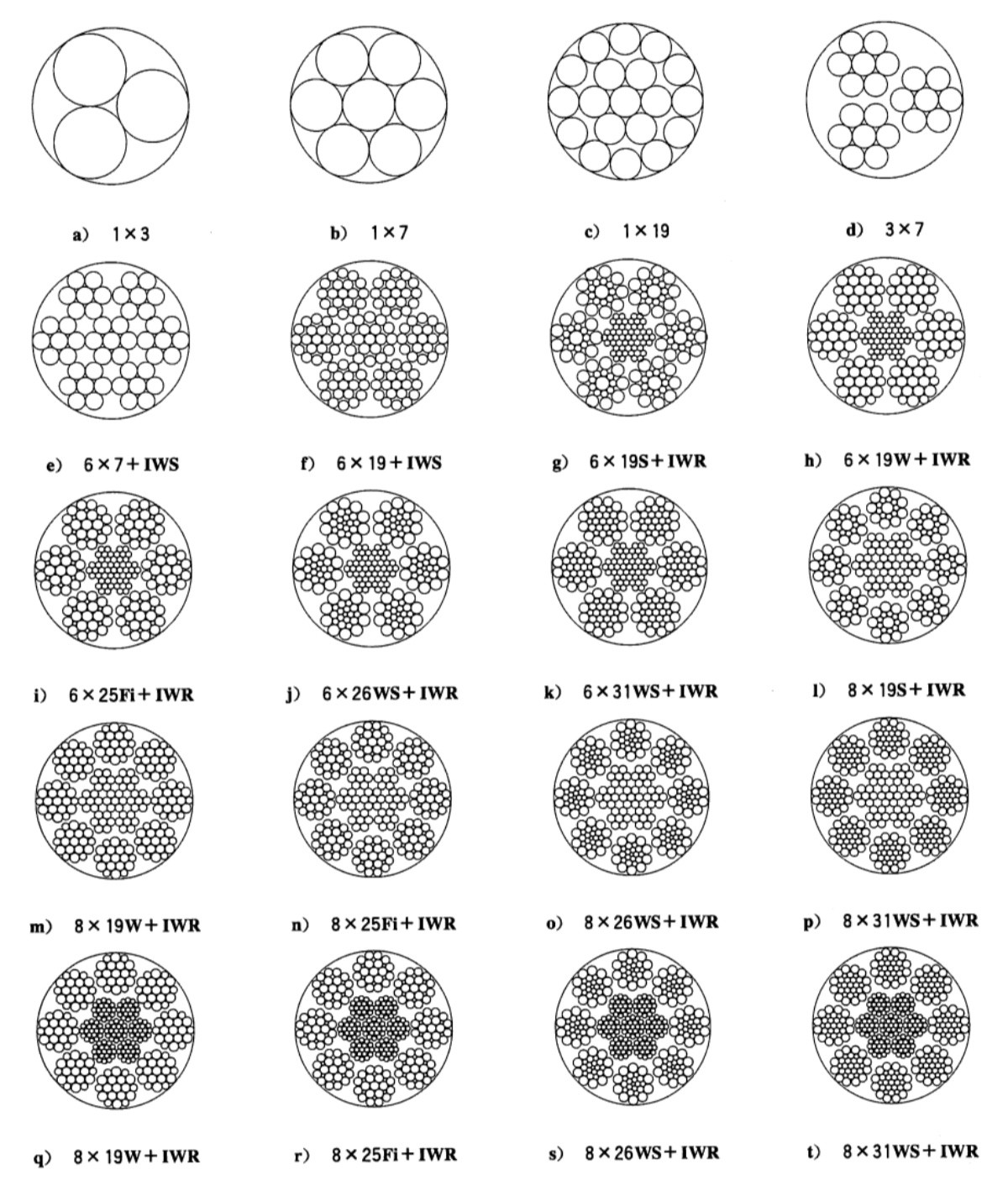

Construction	77, 719, 619+FC, 637+IWR, 624+7FC, 661+IWS
Rope Core	Steel core, hemp core, asbestos core
Composition	Steel wire, rope core and grease
Package	Wooden Reel/coil/plastic reel
Delivery time	7-10 Days
MOQ	1 Ton

Product Categories

Main Ingredients	Tensile Strength	Elongation	Yield strength	Hardness
Stainless Steel	Cr, Ni, Mo	≥520 N/mm²	≥40%	≥205 N/mm²	HB ≤187
Galvanized	Fe, C, Si, Mn	≥350 N/mm²	≥15%	≥207 N/mm²	HB ≥150

Chemical Composition

Steel Grade	Carbon(%)	Silicon(%)	Manganese(%)	Phosphorus(%)	Sulphur (%)	Chromium(%)	Nickel(%)	Cuprum(%)
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17

PRODUCT PARAMETERS

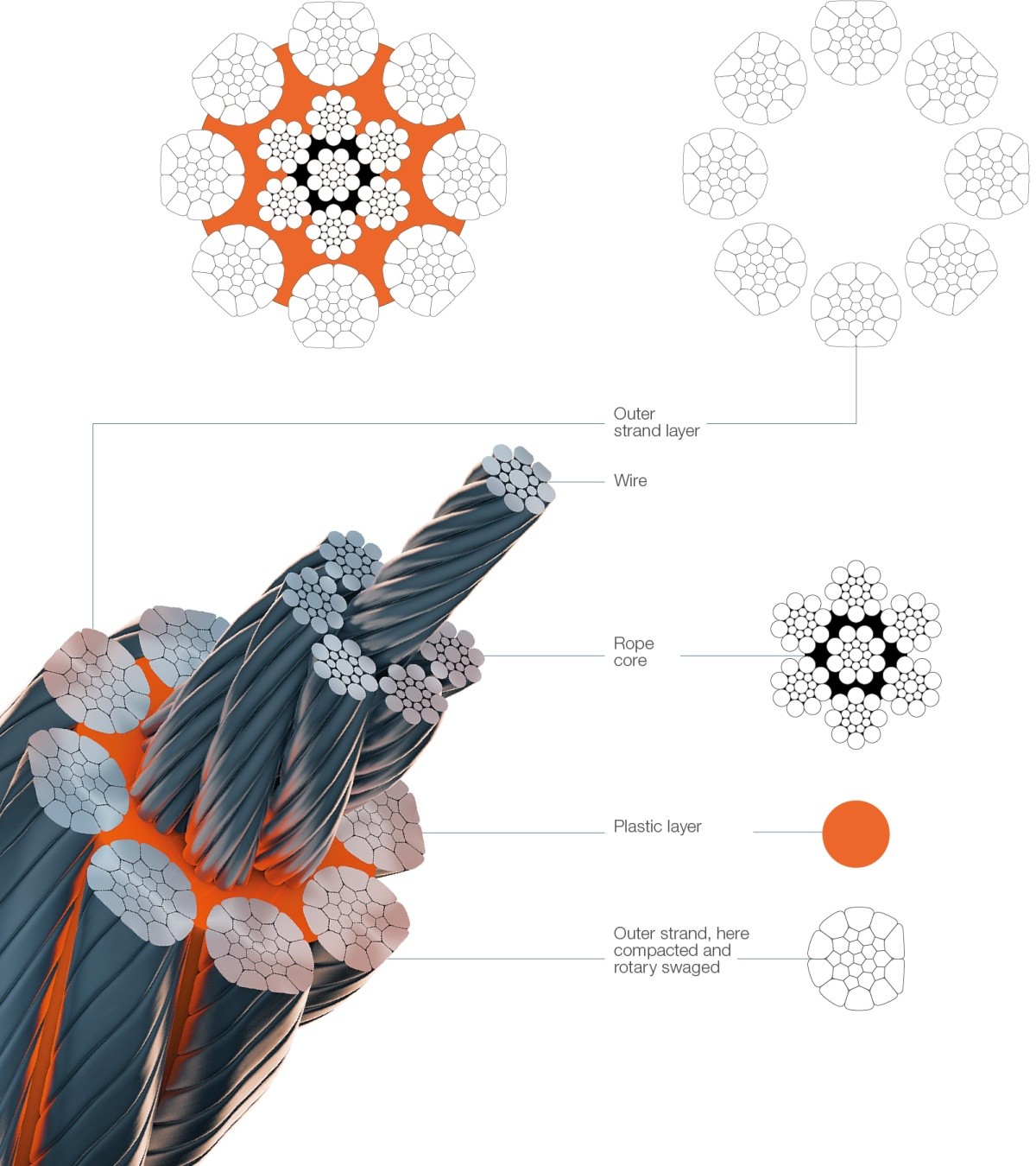

Product Structure

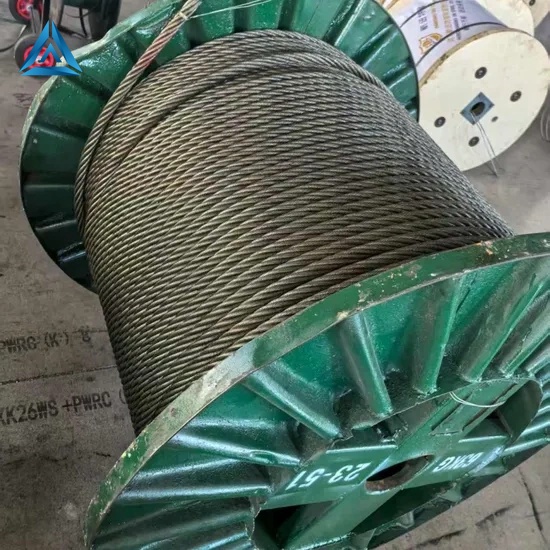

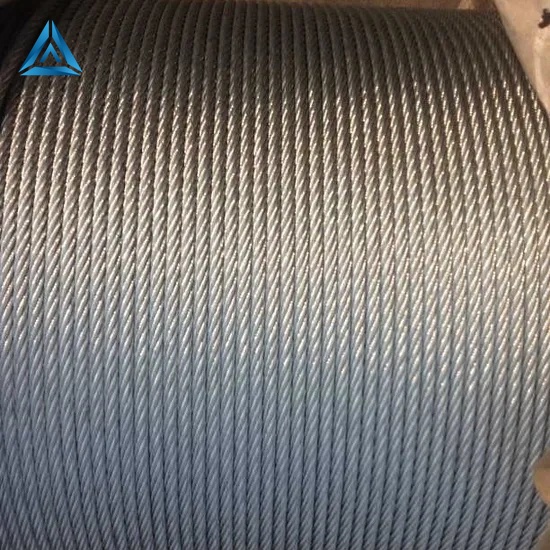

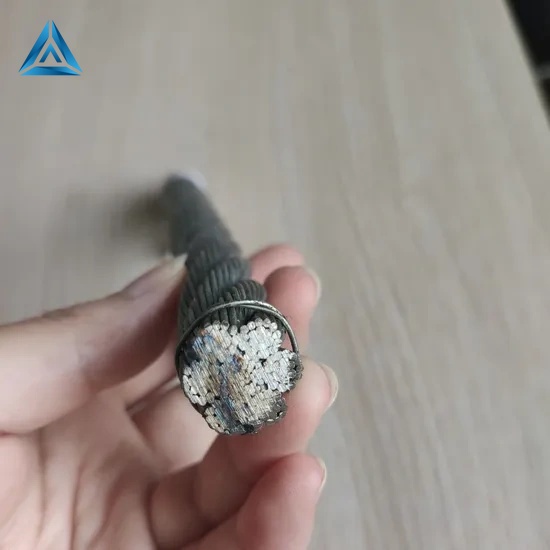

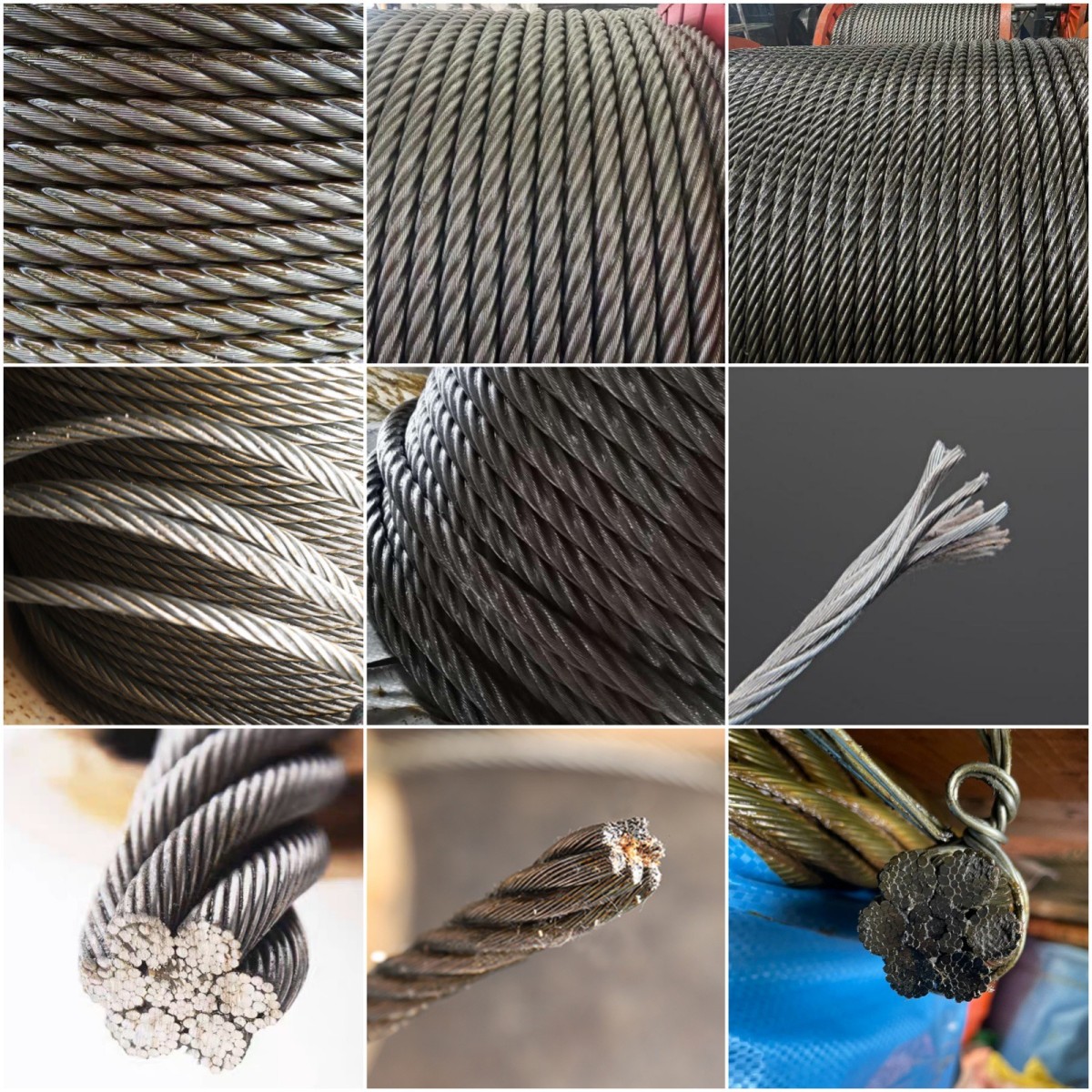

Product Display

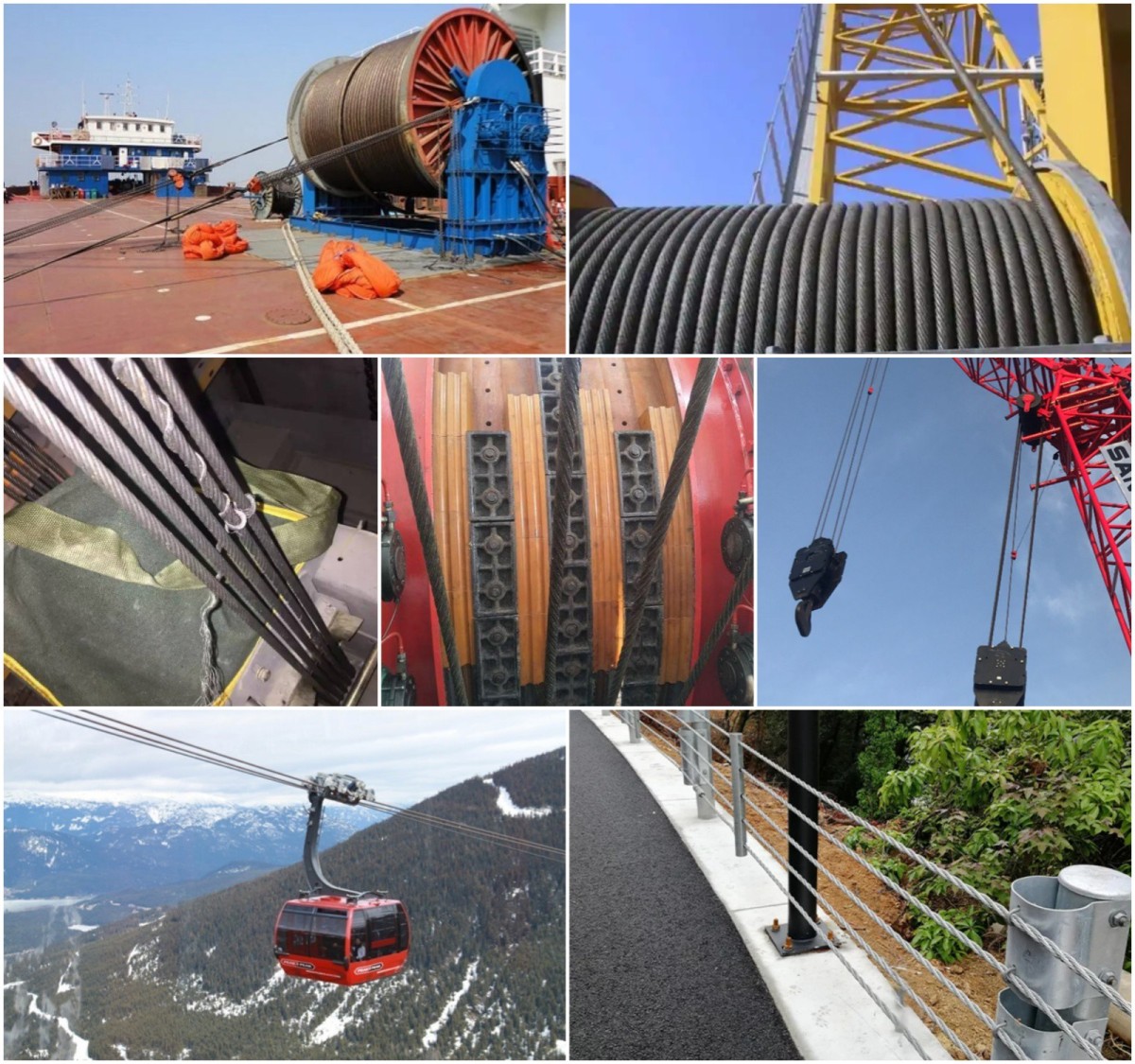

Product Application

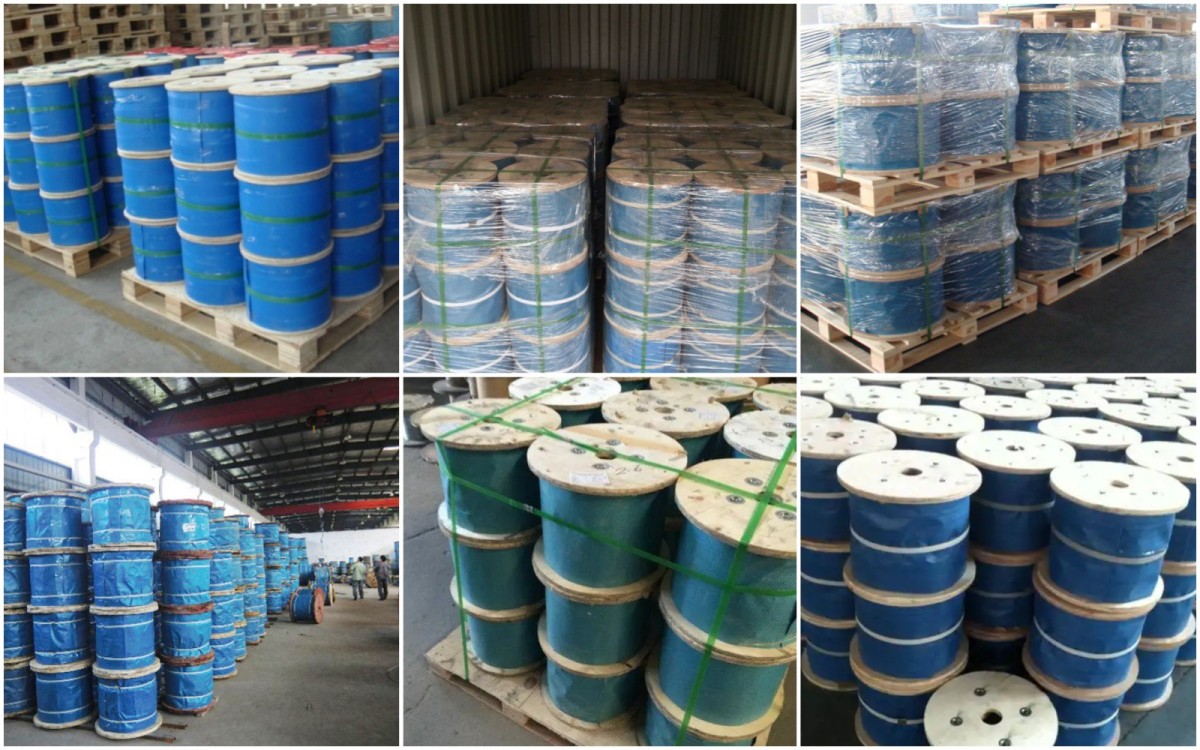

PACKAGING AND TRANSPORTATION

FAQ



What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated



What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company



Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.



Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.



Are you a factory or a distributor?

We are a factory with 15 years of export experience



How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
