Elevator Steel Wire Rope

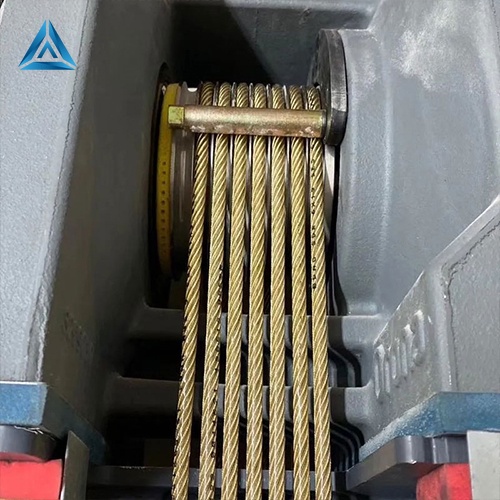

Elevator wire rope is the core load-bearing traction component of an elevator. The mainstream design is an 8×19S fiber core structure, made of twisted high-carbon steel wire, combining high flexibility, fatigue resistance, and wear resistance. It connects the car and counterweight, relying on the friction of the traction sheave to drive lifting and lowering. National standards require redundant multi-rope configurations, with a single rope capable of bearing the entire weight of the elevator. It operates with low noise and smoothness, and is widely used in passenger and freight elevators. Regular wear inspection is necessary to ensure safety.

sales04@dxsteelgroup.com

+86 13256191295

Product Description

Product Name	Steel Wire Rope
Standard	GB 8903-2024, ISO 10425:2023, ASTM, JIS, etc.
Material	Galvanized, stainless steel, carbon
Diameter	6-70mm
Length	100m-2000m
Construction	77, 719, 619+FC, 637+IWR, 624+7FC, 661+IWS
Rope Core	Steel core, hemp core, asbestos core
Composition	Steel wire, rope core and grease
Package	Wooden Reel/coil/plastic reel
Delivery time	7-10 Days
MOQ	1 Ton

Product Categories

Main Ingredients	Tensile Strength	Elongation	Yield strength	Hardness
Stainless Steel	Cr, Ni, Mo	≥520 N/mm²	≥40%	≥205 N/mm²	HB ≤187
Galvanized	Fe, C, Si, Mn	≥350 N/mm²	≥15%	≥207 N/mm²	HB ≥150

Chemical Composition

Steel Grade	Carbon(%)	Silicon(%)	Manganese(%)	Phosphorus(%)	Sulphur (%)	Chromium(%)	Nickel(%)	Cuprum(%)
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17

PRODUCT PARAMETERS

Product Structure

Product Display

Product Application

PACKAGING AND TRANSPORTATION

FAQ



What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated



What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company



Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.



Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.



Are you a factory or a distributor?

We are a factory with 15 years of export experience



How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
