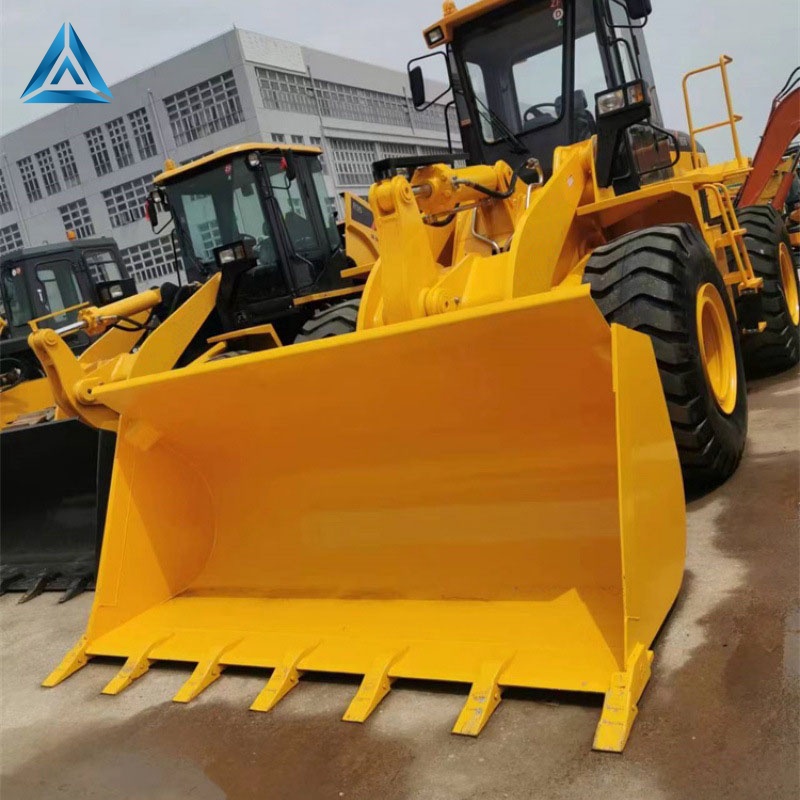

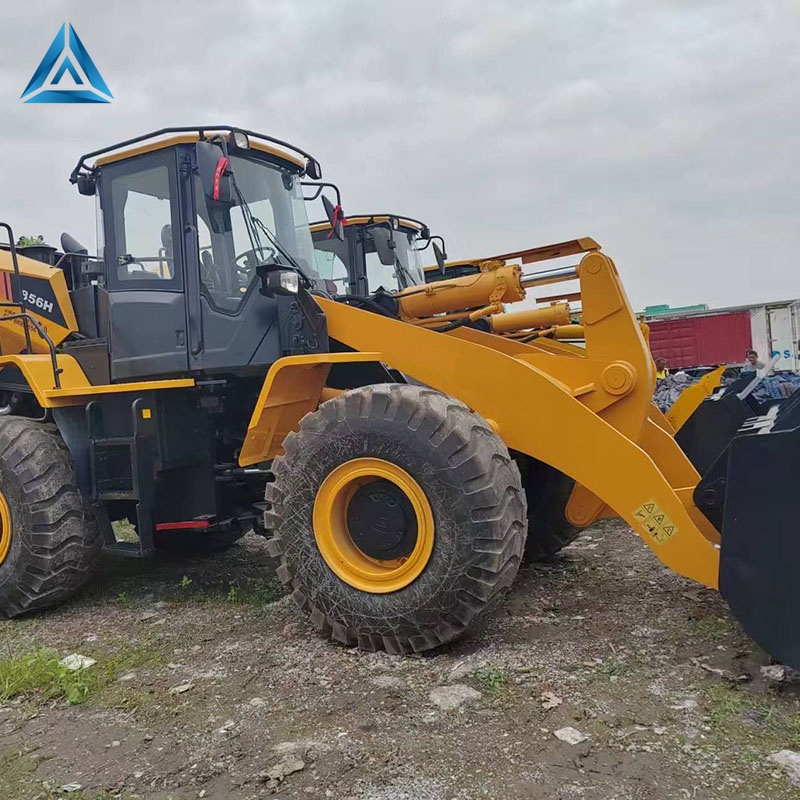

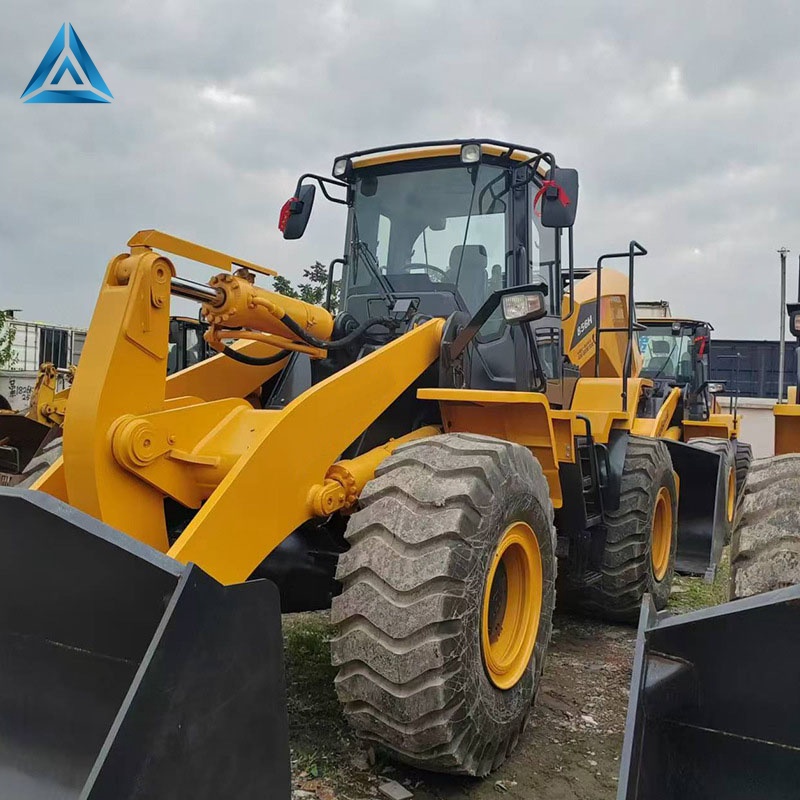

CG956G Cost-Effective Loaders

CG956G Cost-Effective Loaders
Loaders are core machinery in earthmoving construction, primarily used for shoveling and loading bulk materials such as soil, sand, gravel, and coal. They can also lightly excavate ores and hard soil. With attachments, they can also perform bulldozing, lifting, and timber loading/unloading operations. Due to their high operating speed, efficiency, and mobility, they are widely used in highways, railways, mines, ports, and other scenarios.
Loaders come in various types. Based on power, they can be divided into fuel-powered, electric, and hybrid models. Electric loaders have zero emissions and low energy consumption, making them particularly economical in stationary environments. Based on their walking mechanism, they can be divided into wheeled and tracked types; the former is flexible and efficient, while the latter has strong off-road capabilities.
sales04@dxsteelgroup.com
+86 13256191295
Contact Us

Product Description

H01ce58170f824e6493d8b52af9689399m (1)

H4f7e48860b06426e90278c12b063ff74k


PRODUCT PARAMETERS

Total operating weight16600kg
Rated load capacity5000kg
Rated bucket capacity3.1m³‌( Or 2.5m³, 2.7m³, 3.6m³, 4.3, 2.7m³)
Unloading height (45° angle)3182mm~3196mm
Unloading distance (45° angle)1033mm~1180mm
Excavation power170kN, 180kN, etc.
Engine ModelWD10G
Rated Power162kW / 2200rpm
Maximum Traction165kN
Overall length8020mm~8235mm
Overall width3000mm
Overall height3470mm~3570mm
Wheelbase3280mm
Minimum turning radius6575mm~6605mm


PACKAGING AND TRANSPORTATION

未命名


FAQ

What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated

What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company

Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.

Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.

Are you a factory or a distributor?

We are a factory with 15 years of export experience

How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
