Loaders are core machinery in earthmoving construction, primarily used for shoveling and loading bulk materials such as soil, sand, gravel, and coal. They can also lightly excavate ores and hard soil. With attachments, they can also perform bulldozing, lifting, and timber loading/unloading operations. Due to their high operating speed, efficiency, and mobility, they are widely used in highways, railways, mines, ports, and other scenarios.
Loaders come in various types. Based on power, they can be divided into fuel-powered, electric, and hybrid models. Electric loaders have zero emissions and low energy consumption, making them particularly economical in stationary environments. Based on their walking mechanism, they can be divided into wheeled and tracked types; the former is flexible and efficient, while the latter has strong off-road capabilities.
sales04@dxsteelgroup.com
+86 13256191295
Contact Us

Product Description

H01ce58170f824e6493d8b52af9689399m (1)

H4f7e48860b06426e90278c12b063ff74k


PRODUCT PARAMETERS

Rated Load Capacity5000 kg
Operating Weight16,800 – 17,100 kg
Rated Power162 kW (220 hp)
EngineCummins or Weichai WD10G220E21
Standard Bucket Capacity3 m³ ( Or 1.8 to 5.6 m³ )
Dumping Height2970 mm
Dumping Distance1200 mm
Max. Breakout Force165 – 167 kN
Total Cycle Time (Lifting + Dumping + Lowering)≤ 11.5 seconds
Max. Travel Speed36 km/h
Max. Tractive Force175 kN
Tire Specification23.5-25 PR16
Minimum turning radiusApprox. 6347 mm
Overall Length8130mm
Overall Width2976mm (Outside of Bucket)
Overall Height3480mm
Wheelbase3427mm
Minimum Ground Clearance485mm

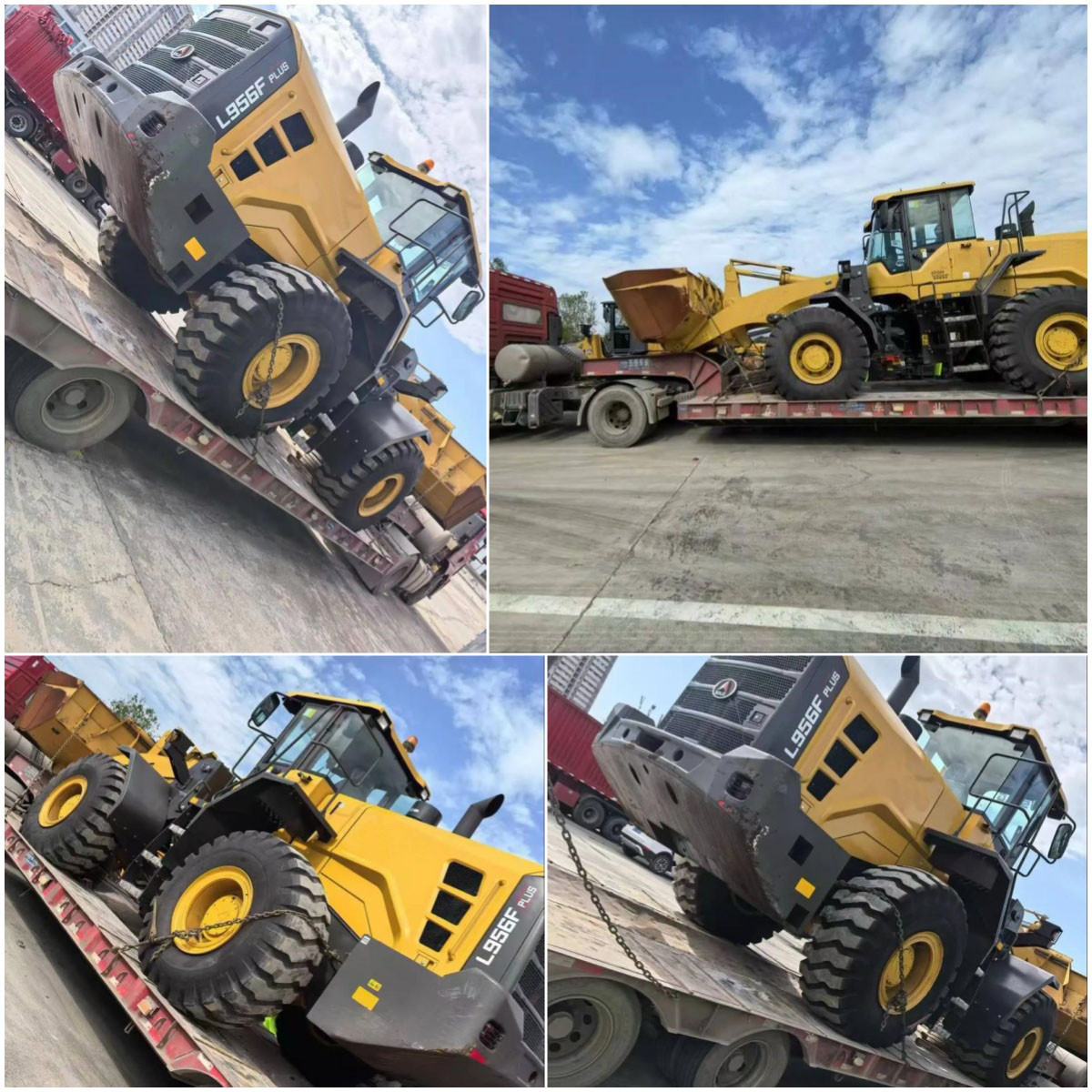

PACKAGING AND TRANSPORTATION

未命名


FAQ

What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated

What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company

Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.

Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.

Are you a factory or a distributor?

We are a factory with 15 years of export experience

How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
